Sky Rider Drone | Full Kit
Sky Rider Drone | Full Kit
Get a new point of view on the world! With this innovative new series, you will be able to construct and fly a remarkable aircraft – your own personal quadcopter that can be used to take incredible pictures and make movies with a HD 720p camera built-in, or you can just fly it for fun and practise your piloting skills!
All Full Kits are provided with CD instructions only.
Product in Depth
Key Features SKY RIDER DRONE
Maximum speed (up/down) 5 metres per second (16.4 Feet)
Maximum speed (forward) 20 metres per second
Yaw rate 220° per second
Maximum inclination 45° with tilt function
Integrated GPS Sensor with "Home" option
Flight Mode Manual and assisted with "headless" function
Stability on three axes with gyroscopes, magnetometer, and accelerometer
Video camera built in, photo resolution: 1MG, Video resolition: 1280/720 pixel in .AVI Format, set up for Action Cam
Technology and design: A truly remarkable quadcopter! A unique design, made to the highest technical specifications – easy to assemble and easy to fly!
Polycarbonate shell – ultralight PVC! The frame has enormous strength but is still surprisingly light – the result is a medium-sized drone with a take-off weight of only 1.53 kilograms (3.37lb)
Latest generation of brushless electric motors. The four brushless motors are powerful and silent. With less friction than conventional motors, they give a higher rotation speed and optimise battery consumption.
Photos and video. You’ll get an integrated camera for photos and videos (1280x720 avi, 720p), plus the drone is also ready for you to connect your own action camera if you wish.

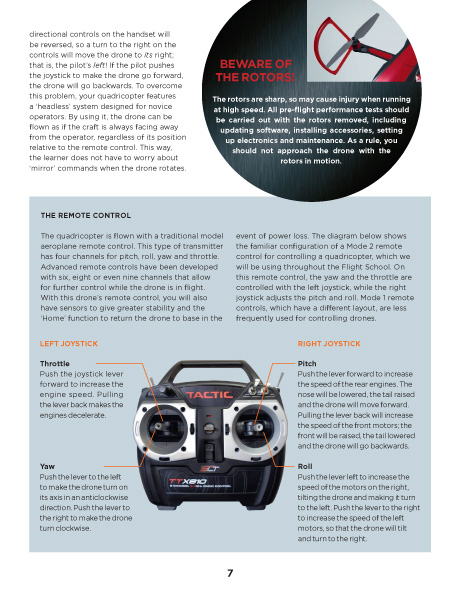

A professional remote control. The eight-channel digital radio remote control for the Sky Rider Drone will be given FREE as part of the series. It is a special transmitter operating in the 2.4 GHz band, which prevents external interference, even from other drones in the same airspace. The number of channels makes it much easier to fly the drone, and allows you to access special functions.
State of the art electronics. With accelerometer, barometric altimeter, gyroscopes, GPS sensor and magnetometer all included in the basic equipment.
Multicoloured LEDs. Among the Sky Rider Drone’s many charms are the multicoloured LEDs located under the engine arms. In addition to creating a striking visual effect, these lights enable the pilot to see the orientation of the model during flight.
Lipo batteries. Compared with traditional nickel-cadmium batteries, lithium polymer batteries are lighter and provide greater flying range. The flight time with the 5000 mA battery will be between 10 and 12 minutes. High winds or aggressive flying will shorten the flight time. Please start with flights no longer than 10 minutes. Spare battery will be available soon to purchase.
Model Content
• 1 Quadcopter
• 4 props with nuts - 2 CW & 2CCW
• 4 prop guards - 2 red & 2 black
• Tools - 3.0 Hex wrench
• 5000mA lipo
• Lipo charger
Model Details
Maximum speed (up/down) 5 metres per second (16.4 Feet) | Maximum speed (forward)20 metres per second | Yaw rate 220° per second | Maximum inclination 45° with tilt function | Integrated GPS Sensor with "Home" option | Flight Mode Manual and assisted with "headless" function | Stability on three axes with gyroscopes, magnetometer, and accelerometer | Video camera built in, photo resolution: 1MG, Video resolution: 1280/720 pixel in .AVI Format, set up for Action Cam
Overall Dimensions
Dimensions 45 x 39 x 19.5cm/17.7 x 15.3 x 7.6 inches | Weight 1.53 kg/3.37lb
Look Inside

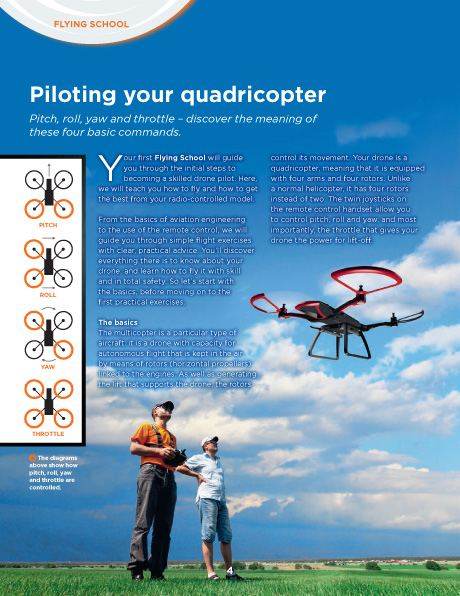

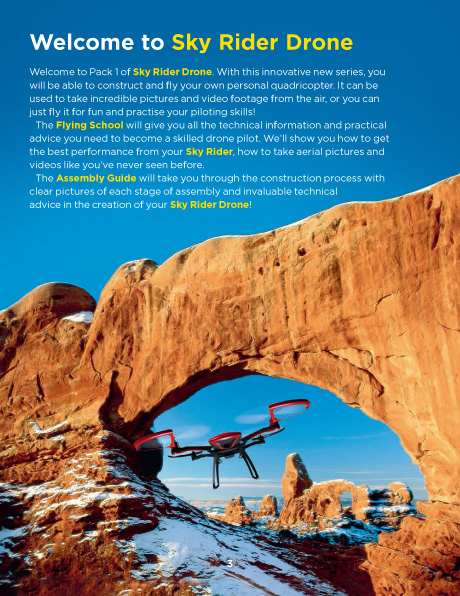

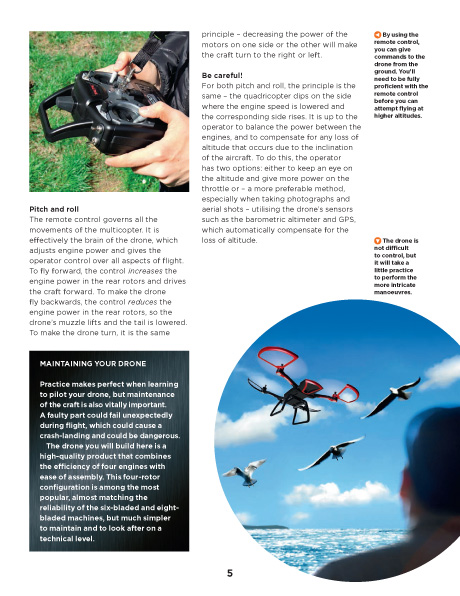

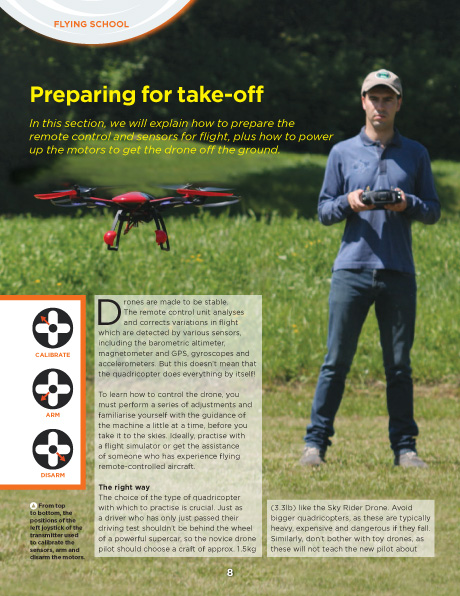

Clear step-by-step instructions show how to assemble and finish the parts - every step of the way. Even if you've never tried this type of project before, you'll be able to put your Sky Rider Drone together in easy stages, learning the skills as you go.The Flying School guide will give you all the technical information and practical advice you need to become a skilled drone pilot. We’ll show you how to get the best performance from your Sky Rider, how to take aerial pictures and videos like you’ve never seen before.The Assembly Guide will take you through the construction process with clear pictures of each stage of assembly and invaluable technical advice in the creation of your Sky Rider Drone!








Through your building experience, you will have help from our experts with the easy-to-follow step-by-step assembly guide. You can also watch our Official Video Build Diary on Youtube or take a look also at our exclusive Sky Rider Drone Forum and discuss with fellow modelers. Even as a model-making novice, you can build this unique quadcopter model together in easy stages, learning the skills as you go.
Sky Rider Drone pre-flight checklist video is available HERE.
The Sky Rider Drone Control Software is available as a download below.
Your Build consists of 12 Packs. Each Pack has either 4 or 5 stages. CLICK HERE for more details.
Download Step by step guide
